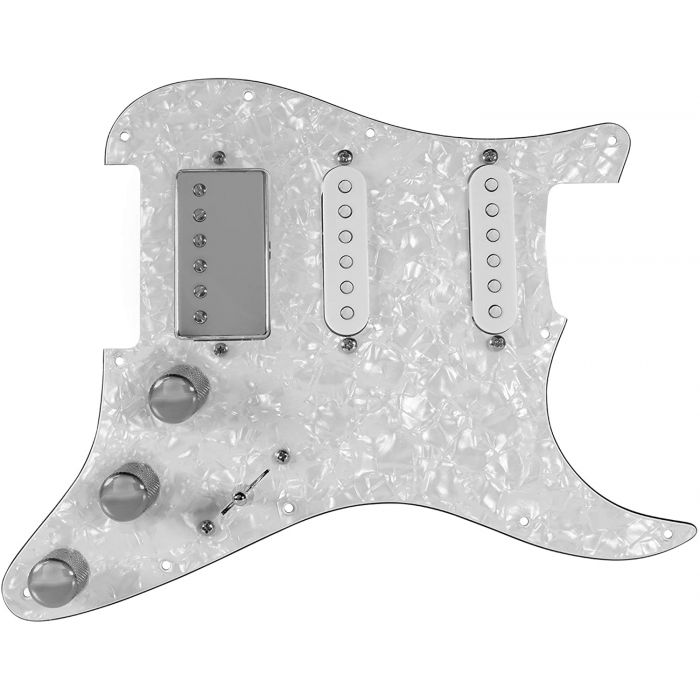

920D Custom Fiesta Pickups Loaded WHITE PEARL Pickguard for HSS Fender Strat

920D Custom Loaded pickguards feature point to point hand soldered connections with vintage style cloth wire, 920D Custom split shaft pots, CRL 5-way switches, custom cut pickguards, and top quality knobs and buttons. This pickguard features a Fiesta Pickups PAF Style AlNiCo 5 Smoothie in the bridge position and two Fiesta Hush Puppies Vintage AlNiCo 5 Hum-Cancelling pickups in the neck and middle positions. The bridge/middle selector position splits the dual coil humbucker. This is a classic sounding vintage output loaded pickguard.


Components:
Fiesta Smoothie (Bridge)
Fiesta Hush Puppies Vintage Hum-Cancelling (Neck and Middle)
920D Custom White Pearl 11-hole 3-ply Pickguard
920D Custom White Plastic Skirted Knobs
920D Custom S5W-HSS Wiring Harness


Fiesta Smoothie Bridge
DC Resistance 7.84K Ohms - AlNiCo 5 Magnet - 4 Conductor Wiring -

Fiesta Hush Puppies Vintage Hum-Cancelling middle and neck
9.8K Ohms - 3 Henries - AlNiCo 5 Magnet



920D Custom S5W-HSS 5-Way S Style Wiring Harness

Our 920D Custom S5W-HSS harness is designed for guitars with a full sized humbucker in the bridge position. It features a 5-way super switch that automatically splits the humbucker when combined with the middle pickup (position 2). It also allows the single coil pickups to "see" 250K volume control while the humbucker "sees" 500K volume control. This wiring harness is a must-have for your HSS.


Components

1 - 920D Custom 450G Series 250K Pot by CTS
2 - 920D Custom 450G Series 500K Pots by CTS
1 - CRL USA Spec 5-Way Super Switch
1 - .022 Orange Drop Capacitor by Sprague Electric
1 - .047 Orange Drop Capacitor by Sprague Electric
1 - 680pF Ceramic Capacitor (Treble Bleed)
1 - 150K Resistor (Treble Bleed)
2 - 470K Resistors (Single Coil Pickups)
1 - Pure Tone Output Jack
1 - 920D Custom Signature Wiring by Gavitt Wire



Switch Positions

Bridge
Bridge/Middle
Middle
Middle/Neck
Neck
