920D Custom S5W-HSS 5-Way Super Switch Wiring Harness for H/S/S S-Style Guitars

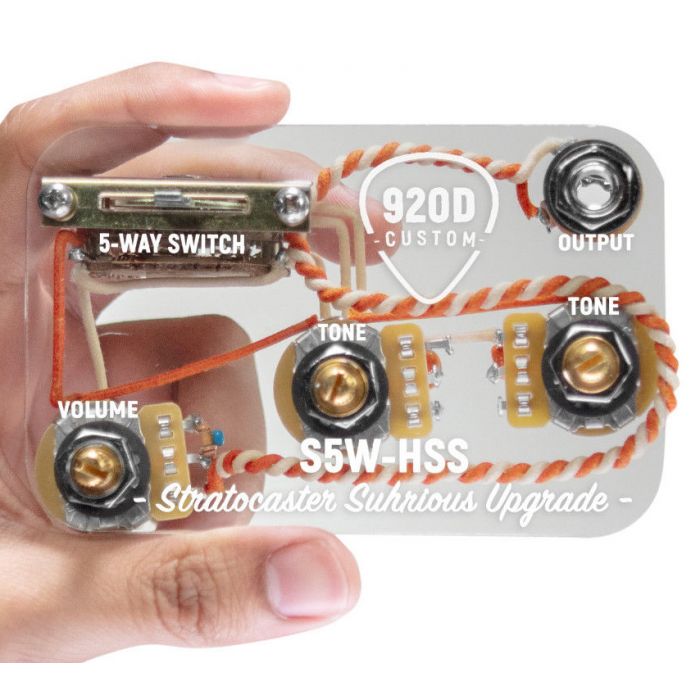

920D Custom S5W-HSS 5-Way S Style Wiring Harness
Our 920D Custom S5W-HSS harness is designed for guitars with a full sized humbucker in the bridge position. It features a 5-way super switch that automatically splits the humbucker when combined with the middle pickup (position 2). It also allows the single coil pickups to "see" 250K volume control while the humbucker "sees" 500K volume control. This wiring harness is a must-have for your HSS.
Components
- 1 - 920D Custom 450G Series 250K Pot by CTS
- 2 - 920D Custom 450G Series 500K Pots by CTS
- 1 - 5-Way Super Switch
- 1 - .022 Orange Drop Capacitor by Sprague Electric
- 1 - .047 Orange Drop Capacitor by Sprague Electric
- 1 - 680pF Ceramic Capacitor (Treble Bleed)
- 1 - 150K Resistor (Treble Bleed)
- 2 - 470K Resistors (Single Coil Pickups)
- 1 - Pure Tone Output Jack
- 920D Custom Signature Wiring by Gavitt Wire
Switch Positions
- Bridge
- Bridge/Middle
- Middle
- Middle/Neck
- Neck
Product Details
 |
920D Custom Signature WiringAll 920D Custom products are highlighted with our signature orange wire. Gavitt Wire, a leading producer of premium guitar wire, has agreed to custom manufacture our signature cloth covered pushback wire, and we believe it is the perfect choice for hotrodding your guitar. The wire is built with an outer waxed cotton layer and an inner Celanese braid that provides impressive ruggedness while still maintaining a 22 gauge thickness. Limiting the amount of wire on each build compliments your choice of pickups by creating the perfect balance between capacitance and resistance. |
920D Custom 450G Series Potentiometers920D Custom potentiometers are used in this build. Our pots are manufactured by CTS to our exact specifications and are metered for accuracy before being used in any 920D Custom gear. We specify a 10% audio taper, accompanied with a low rotational torque rating of 0.50-2.00 in.oz (compared to the industry standard 0.75-6.00 in.oz rating) to provide a buttery knob sweep. We hold potentiometer tolerances to ±10%. The industry standard is ±20%. Tightening potentiometer tolerances will help you accurately shape your tone. |
 |
 |
Pure Tone 1/4" Output JackWe exclusively use Pure Tone output jacks in all builds. Why? Because they're unquestionably better than the old, industry standard. Period. We've all heard the crackle of a weak connection caused by pressure grounds. This is due to the old style jack only having 1 squared-off point of contact trying to meet a rounded quarter inch plug. Pure Tone has completely changed that. Pure Tone's multi-contact quarter inchoutput jack has 4 rounded contact points that hold the quarter inch plug firmly in place. With 4 times the contact points, all of the dreaded cracks, snaps, and pops are gone for good. Trust us, the second you plug into this jack, you'll never want to go back. |
Sprague Orange Drop CapacitorsWe’ve used Sprague Orange Drop Capacitors in our builds since day 1. Orange Drop Polyester Film/Foil Capacitors are wound from the most reliable polyester film and aluminum foil available and are protected by a rugged conformal coating of orange epoxy. All of that to say, these capacitors do a tremendous job of warming up your tone and taking away some of the bite of an overly bright sound. Like our potentiometers, these capacitors are held to a ±10% tolerance. |
 |
 |
5-Way Super SwitchOur S5W-HSS Wiring Harness is built using a 5-Way Super Switch. These switches are well known for their durability and noise-free operation and they allow a variety of mods. |
Hand-Built In The U.S.A.All 920D Custom creations are hand-built by experienced technicians at our headquarters in Conway, Arkansas. We treat your new gear like it's going into one of our own guitars. Every millimeter of wire is cut precisely, every solder joint is perfectly smooth and symmetrical, and every bend is purposeful and direct. We hold everything to a tremendous level of quality because we know the smallest details matter and we take great pride in our work. |
 |
| Manufacturer | 920D Custom |
|---|---|
| Model Number | S5W-HSS |
| Shipping Info | FREE Standard Shipping (1-6 Business Days) |
| Dispatch Time | SHIPS OUT SAME OR NEXT BUSINESS DAY |
