SCHAL-15330006

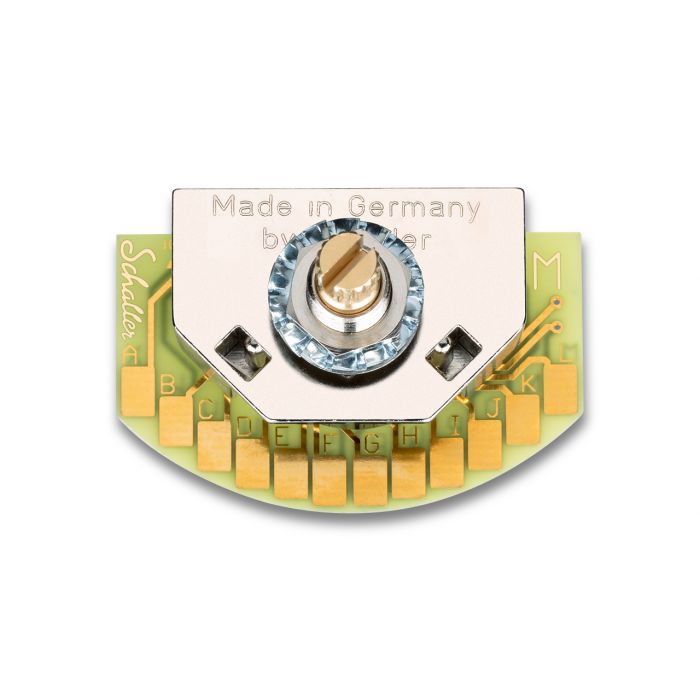

Schaller Germany Megaswitch 5-Way ROTARY MODEL M - 15330006
In stock now
Special Price
$34.99
MSRP
$49.99
Best materials, extremely rugged metal housings and super solid moving parts with gold-plated conducting paths ensure perfect sound, superb functionality and a long service life. Manufactured for extreme precision: Snaps cleanly into all switch positions.
With simple installation and a lot of flexibility, these switches substantially broaden the range of possible sounds on electric guitars. They allow coil combinations on the pickups which are impossible to create using conventional standard switches.
What is the difference between the Schaller Megaswitch rotary switch and the regular Megaswitch?
- rotary switch instead of toggle switch
- The switch housing with circuit board is designed for horizontal installation in the body.
- available types: 5-way (E, E+, S+T, P and M) and 3-way (S+T)
Only the best materials for our production
- sturdy metal housing
- high-strength moving parts
- gold-plated conductors on the circuit board, which guarantee perfect sound transmission
- precise engagement in all switch positions
- optimal function and a long lifetime
Technical specifications
- weight: approx. 36 g
- printed circuit board: 46 x 28 mm
- size metal case: 34,4 x 23 mm
- Diameter potentiometer axis: 6 mm, with slotted knurled knob mount
- Mounting: M8 thread
- Overall size (W x H x D): 46 x 30 x 34.8 mm (37 mm incl. washer and PCB screw head)
Scope of delivery
- 1 x Megaswitch rotary switch
- 2 x hexagon nuts
- 1 x washer
- 1 x toothed lock washer
Key:
S = Fender Stratocaster
T = Fender Telecaster
P = PRS
E = single coil (SC) + humbucker (HB)
E+ = SC + HB in combination
M = all conceivable combinations and variants!
| Manufacturer | Schaller |
|---|---|
| Model Number | 15330006 |
| Shipping Info | FREE Standard Shipping (1-6 Business Days) |
| Dispatch Time | SHIPS OUT SAME OR NEXT BUSINESS DAY |
